High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery

Shenzhen Shangyu Electronic Technology Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
    Buy cheap High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery from wholesalers

    Buy cheap High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery from wholesalers
    • Buy cheap High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery from wholesalers

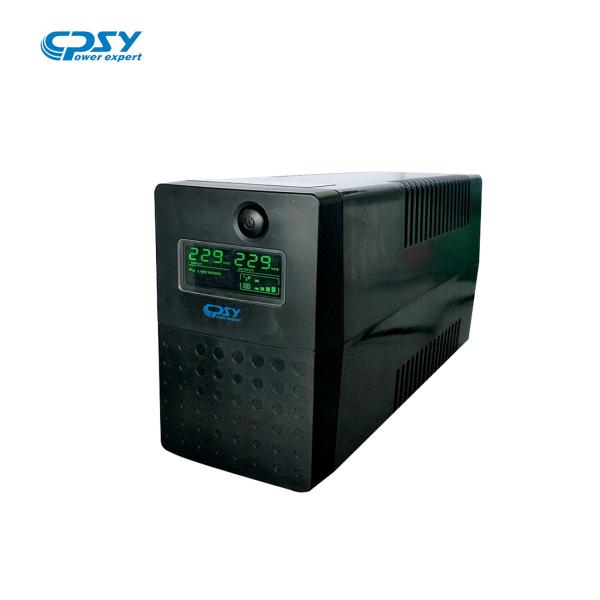

    High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery

    Ask Lasest Price
    Brand Name : CPSY
    Model Number : S series Line interactive UPS
    Certification : ISO9001, CE,ROHS,TLC,OHSAS18001,ISO14001
    Price : usd 30-33 pieces
    Payment Terms : T/T
    Supply Ability : 3000+pieces+per month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High Frequency Online Ups 1000va/800w Dc 12v With 1*12v-9ah Battery

    Shenzhen Shangyu Electronic Technology Co., Ltd

    S series Technical date
    MODELS400S450S500S550S600S650S800S850S1000-12VS1050-12VS1000S1500S2000
    LED/LCDLEDLCDLEDLCDLEDLCDLEDLCDLEDLCDLEDLCDLCD
    CAPACITY400VA / 240W500VA / 300W600VA / 360W800VA / 480W1000VA / 500W1000VA / 600W1500VA / 900W2000VA / 1200W
    INPUT
    Voltage220/230/240 VAC
    Voltage Range162-290 VAC
    Frequency Range60/50 Hz (auto sensing)
    OUTPUT
    AC Voltage Regulation
    (Batt. Mode)
    220VAC±10%
    Frequency Range
    (Batt. Mode)
    60 Hz or 50 Hz ±1 Hz
    Transfer TimeTypical 2-6 ms, 10ms max.
    Waveform (Batt. Mode)Simulated Sine Wave
    BATTERY
    Battery Type & Number12 V/7Ah x 112 V/9 Ah x 112 V/7 Ah x 212 V/9 Ah x 212 V/9 Ah x 2
    Typical Recharge Time4-6 hours recover to 90% capacity
    PROTECTION
    Full ProtectionOverload, discharge, Short circut, and overcharge protection
    INDICATORS
    LCD DisplayAC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery
    LED DisplayAC ModeGreen lightingThe right green LED lighting & the 2nd to 5th
    green LEDs gradually lighting indicating load level
    Battery ModeYellow flashingThe right green LED flashing & the 2nd to 5th
    green gradually lighting indicating battery capacity
    FaultN/ARed lighting
    ALARM
    Battery ModeSounding every 10 seconds
    Low BatterySounding every second
    OverloadSounding every 0.5 second
    Battery Replacement AlarmSounding every 2 seconds
    FaultContinuously sounding
    PHYSICAL
    Dimension, D x W x H (mm)284X100X140350 x 146 x 160397 x 146 x 205
    Net Weight (kgs)4.24.54.95.1811.111.5
    ENVIRONMENT
    Humidity0-90 % RH @ 0- 40°C (non-condensing)
    Noise LevelLess than 40dB
    MANAGEMENT
    Optional USB/RS-232 PortSupports Windows22000/2003/XP/Vista/2008,Windows27,Linux,Unix,andMAC
