Modular ups 10kva N+A or N+X parallel redundancy online ups power
supply for data center

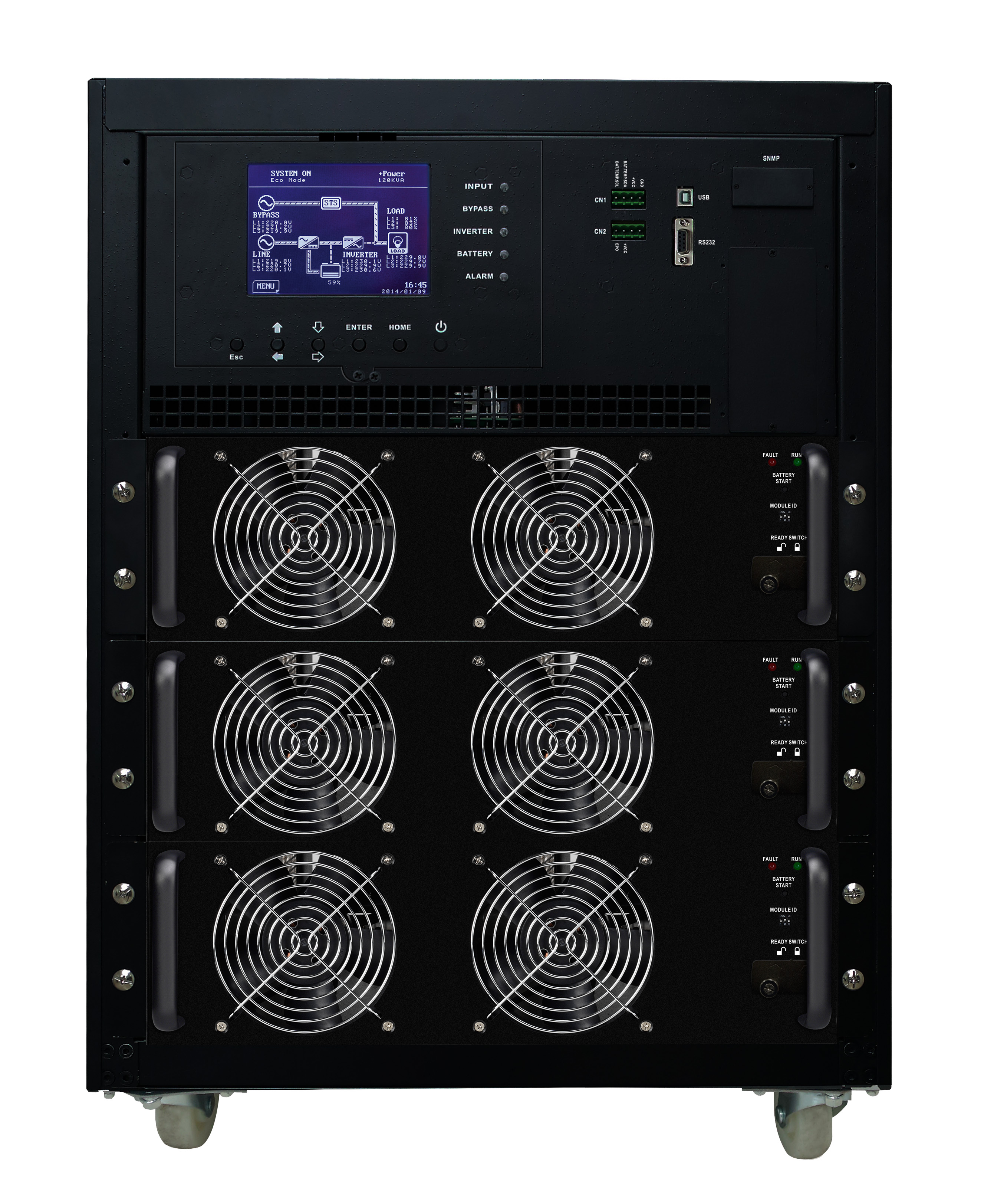

CPY series Modular UPS 10-300KVA
Model:CPY1020/CPY1040/CPY1060/CPY1590/CPY2080/CPY20120/CPY20180/CPY20200/CPY3090/CPY30120/CPY30210/CPY30300
UPS power range: 10KVA~300KVA
Feature:
♦Green energy conservation power:Output power factor 1, machine
efficiency up to 94.5%
♦The number of battery sections is adjustable from 32/36/40.
Standard 40-section set
♦N+1 or N+R parallel redundant intelligent design increases system
flexibility, stability and safety
♦Optional with battery module unit, each battery module comes
standard with 10 9AH batteries

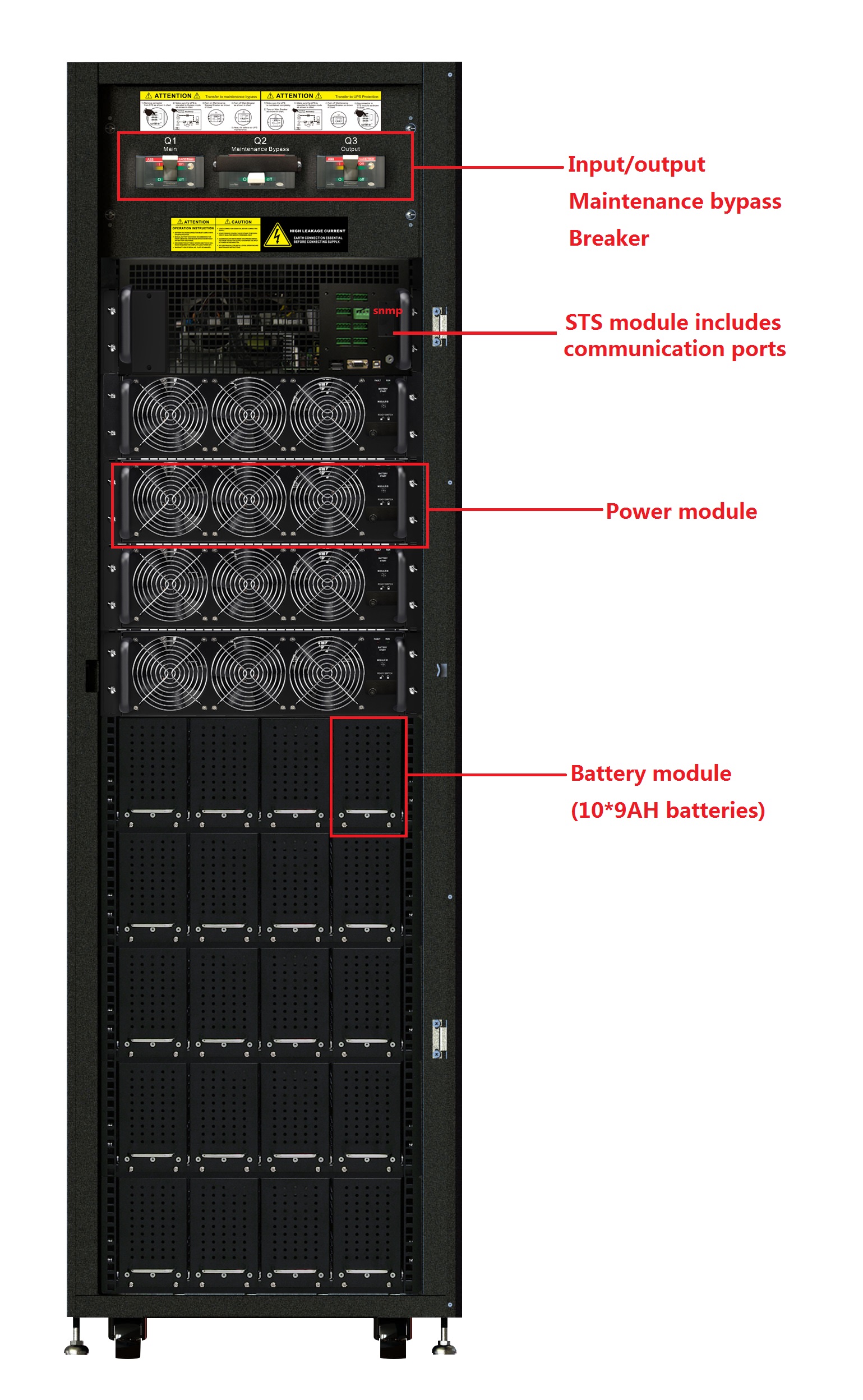

♦Modular design for power modules, STS modules and battery modules
reduces maintenance costs and to save the space after install.
♦Adjustable charging current, maximum charging current per module
up to 8A
♦Adopt double DSP controller disposing, module independent control,
”0” single point failure risk
♦Remarkable generator match performance.
♦All circuit wafers use the water-stain-dust-proof craft.
♦System Options: SNMP network card,Lightning-protection
module,Battery temperature
Compensator,SMS alarm apparatus,Dust screen
Application: Data centers, industrial environments, etc. are key devices for
power supply and protection.
Parameters:
| Model | CPY1060 | CPY1040 | CPY1020 | CPY1590 |
| Capacity | 60KVA/60KW | 40KVA/40KW | 20KVA/20KW | 90KVA/90KW |
| Power Module | PM10X(10KVA/10KW) | PM15X(15KVA/15KW) |
| INPUT |
| Phase | 3*380VAC (3PH+G or 3PH +N+G) |
| Voltage range | 304VAC~478VAC(line-line), 100% load;228-304VAC, load derated from
100%-75%linearly |
| Frequency Range | 40Hz-70Hz |
| power factor | >0.99 |
| THDi | THDi<4% @ 100% linear load |
| OUTPUT |
| voltage | 3 phase: 380/400/415V;1 phase: 220VAC/230V |
| voltage regulation | 1.50% |
| power factor | 1 |
| Output voltage stability | ±1% |
| ±5% |
| Frequency | 50Hz |
| Frequency Synchronization range | ±1% |
| Frequency Synchronization speed | 1·2Hz/s |
| Power factor | 0.8 |
| Crest Factor | 3:01 |
| Total Harmonic Distortion(THDv) | ≤2% (linear load); ≤4% (non-linear load) |
| Dynamic in-rush voltage range | 0%->100%->0%(R load)<±5%; 20%->100%->20%(Rload)±3%; |
| Dynamic Recovery Time(III Grade) | 0~100% RCD load;<60ms recover to 90% of norminal voltage |
| Phase Displacement | 120°±1%(balanced load); 120°±2%(imbalances 50% of the load) |
| Transfer time | 0ms |
| Overload Capacity | 0~110% continuous running; 110%~150% for10min~1min;>160% for
200ms |
| Short-circuit capacity | 60~100ms |
| Transient response time | <5ms |
| BYPASS |
| Connection Type | Hardwire 3-wire(1PH+N+G) |
| Input Voltage range | 220VAC±25% |
| Overload Capacity | 1.5In~1.8In 1h-30s |
| Short-circuit capacity | 1.8In~2.0In 30s~200ms |
| SYSTEM |
| Efficiency(At linear load and 270VDC) | 85% | 86% | 86% | 88% |
| ECO mode(Non-parallel models) | Yes |
| EPO Function | Yes |
| Standard | IEC 61000-4-5 Protection surge;IEC62040-1 EMC/EMI, IEC62040-1
Safety |
| BATTERY |
| Battery | Support VRLA Battery |
| 16-18pcs |
| Yes |
| Yes |
| PHYSICAL |
| IP Protection | IP20(Default),IP21/31(oPTIONAL) |
| Dimension,D×W×H (mm) | 570×450×900 | 700×450×1050 |
| Net Weight(KGS) | 125 | 135 | 200 | 280 |
| ENVIRONMENT |
| Operating Temperature | 0~35℃ continuous running.40℃ 8hs running at nominal input voltage,
recharging batteries and no overload, 45℃ derating to 85% with
linear load |
| Humidity | 0~90% (Non-Condensing) |
| Noise level | less than 70dB @ 1 Meter |
| MAINTENANCE |
| Modbus RS-232/RS485 | Support Windows 2000/2003/XP/Vista/2008/7/8,Linux and MAC |
| Dry contacts | 6 outputs and 2 inputs |
| Optional SNMP | Power management from SNMP manager and Web browser |
FAQ
Q1: Main products range
A: shangyu main products range is offline ups 600VA-2000VA, online
ups 1KVA-20KVA, ups battery 12V 7Ah-300Ah(AGM /GEL).
Q2: MOQ
A: For UPS, If custom logo, MOQ is 100unitsfor offline ups,
50unitsfor online ups 1-3KVA, 20units for 6KVA-10KVA. If not, MOQ
is required 1 unit without logo.
For battery 38Ah -300Ah is 10pcs, for battery 7Ah-24Ah is
50-500pcs.
Q3: Can I have a sample for testing?
A:Actually we think samples are not very important.
You can buy from anywhere.But we think our cargo will better than
any others.
Samples price higher than the cargo.
Q4: payment term
A:We accept TT in advance,Western Union,L/C.
Q5: Are you manufacturer or trading company?
A: We are professional manufacturer of ups.
Q6: month capacity
A: It depends on which model.For example,month capacity for small
capacity can reach near 5000pcs and big capacity near 1000pcs.
Q7: Warranty
A: 1 years warranty for ups and battery 7Ah-24Ah, 3 years for
battery 38Ah-300Ah.
Q8:How about your after-sales service?
A:We will send you the spare parts by free if the problems caused
by us during warranty period.
If it is the men-made problems,we also send the spare parts,but you
should pay.
Q9: How long is your delivery time
A: normally 15 days (it mainly based on your model and quantity)
Q10: Tell me the standard of package?
A.: For the small capacity, it use carton box, but for big
capacity,
we should use strong wooden case for protection.
Q11:Can I add my logo on the voltage stabilizers?
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q12:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address: 4F block A, Building 1, Senyang High
Technology Park, Guangming New District, Shenzhen, China.
Q13:Can we mix the 20ft container?
A:Yes,if the items are meet our min order qty.
Q14:Do you have inspection procedures for voltage stabilizers?
A:100% self-inspection before packing
The service we can supply:
1. 10 years factory, engineers with 15years experience average
2. 7*24 hours service
3. Supply OEM/ODM service----the logo, color, plugs and sockets,
LED/LCD display, USB port, RJ45/11 port, etc.
4. Samples/Small order for testing welcomed.
5. Any customized design is welcomed.
6. 1-3 years warranty, provide technical training
7.Provide 365days, 7*24hrs hot-line service to user to advisory for
the problems of the shangyu service, products, technical, business
and fault repair, service Hot-line is 400-0505-800
