2kva high frequency rack-mounted online ups price pure sine wave
online ups 2k with external battery

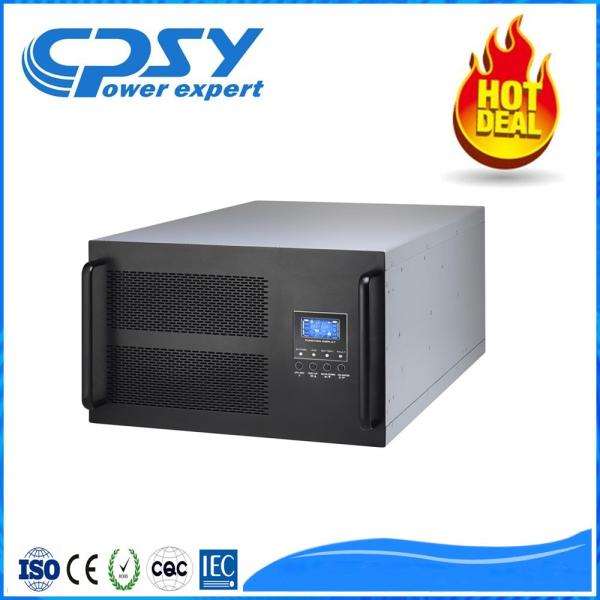

HPR series Rack mount ups1-20KVA
Model:HPR1101B(H)/HPR1102H/HPR1103H/HPR1106H/HPR1110H/HPR3110H/HPR3115H/HPR3120H
UPS power range: 1KVA~20KVA
Features:
1.6KVA/10KVA supports N+1 reliable parallel redundancy technology
2. Rack mount type ups height:1-3KVA 2U, 6-10KVA 3U, 15/20kva 6U
3.DSP technology guarantees high performance 4.Optional output
power factor 0.8/0.9/1
5.ECO mode for energy saving
6.Emergency power off function (EPO)
7.Built-in over voltage cut-off protection and surge immunity for
full-time protection
8.Low input THDi to reduce power system pollution.
Application:
1 ) Professional and IT equipment,small computer room
2) Servers and networking devices
3) CAD/Graphic workstations
4) Control system
5) Medical, electricity, defense, petrochemical,bank,transport,
etc.
Parameter:
| Model | HPR1101B | HPR1101H | HPR1102H | HPR1103H |
| Phase | Single phase and earth ground |
| Power ratting | 1000VA/800W | 1000VA/800W | 2000VA/1600W | 3000VA/2400W |
| INPUT |
| Voltage range | 100-300VAC @ 50% load or 160-280VAC @ 100% load |
| Frequency Range | 50Hz/60Hz (auto sensing) |
| Frequency Range | ≧0.99 @ 100% load |
| OUTPUT |
| Norminal voltage | 200/208220/230/240VAC |
| Voltage range(battery mode) | ±1% |
| Frequency range (Normal mode) | 46Hz-54Hz or 56Hz-64Hz |
| Frequency range (battery mode) | 50Hz±0.1Hz or 60Hz±0.1Hz |
| Waveform Distortion | ≦3%THD(linear load),≦5%THD(non-linear load) |
| Power factor | 0.8 |
| Crest Factor | 3:01 |
| Transfer time | 0ms |
| Waveform | Pure Sine wave |
| EFFICIENCY |
| Normal Mode | 89% | 89% | 89% | 90% |
| BATTERY |
| Battery Type | Sealed lead acid maintenance free battery |
| Quantity(pieces) | 2 | 3 | 6 | 8 |
| Charging Current(MAX) | 1.0A | 6.0A |
| DISPLAY |
| LCD | Load, battery capacity, normal mode, battery mode, bypass,
failure |
| WARMING |
| Battery mode | Sounding every 4 seconds |
| Low battery | Sounding every 1 seconds |
| Overload | Sounding every second |
| Fault | Contentiously Sounding |
| PHYSICAL characteristic |
| Dimension,D×W×H (mm) | 410×438×88[2U] | 310×438×88[2U] | 410×438×88[2U] |
| Net Weight(KGS) | 15.5 | 9 | 12 | 14.2 |
| WORK ENVIRONMENT |
| Humidity | 20~90% (Non-Condensing), 0~40℃ centigrade |
| Noise level | less than 50dB @ 1m |
| MAINTENANCE |
| Modbus RS-232/RS485 | Support Windows 2000/2003/XP/Vista/2008/7/8,Linux,Unix and MAC |
| Optional SNMP | Power management from SNMP manager and Web browser |
