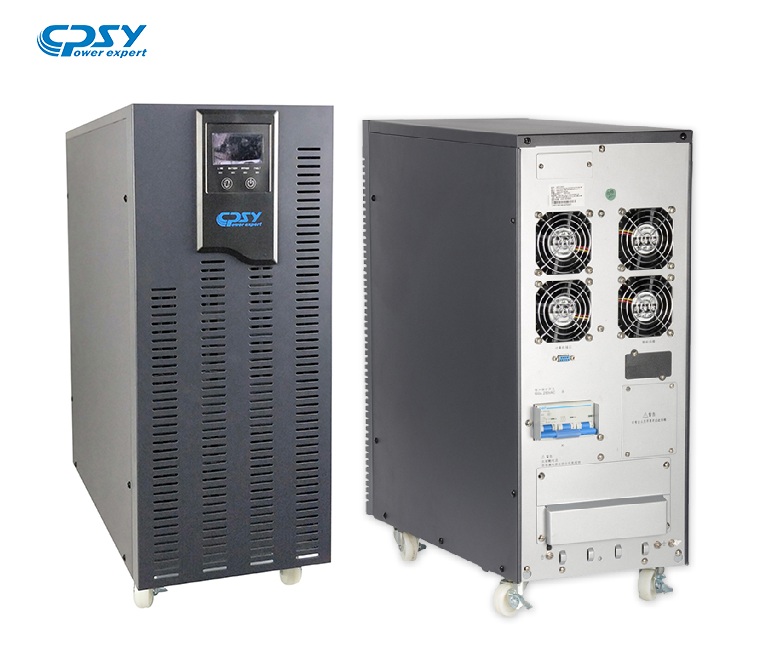

    20kva Igbt Online Ups / 3 Phase Online Industrial Ups HP3120H Molde

    Ask Lasest Price
    Brand Name : CPSY
    Model Number : HP3120H
    Certification : CE, TLC,ISO9001
    Price : US$950-US$1070
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000pcs per month
    Delivery Time : 10-15days
    • Product Details
    • Company Profile

    20kva Igbt Online Ups / 3 Phase Online Industrial Ups HP3120H Molde

    20kva igbt online ups 3 phase online industrial ups 20kva online ups nepal


    High Frequency Online Ups


    Technical Specifications:

    1.True Online UPS with Triple Conversion

    2.Wide Input Voltage Range

    3.Built-in OVCD for High Voltage Protection

    4. Active Input Power Factor Corrector

    5.Selectable Output Voltage

    6. output power factor 0.8

    7. Built-in and External Battery Options

    8. Advanced battery management (ABM)

    9. Smart Battery Charger Design

    10. Comprehensive Display for easy monitoring and access of UPS Status

    11.Generator Compatible

    12. Cold start feature (DC power on)

    13. RS232/USB/SNMP (LAN) for UPS monitoring

    14. ECO mode operation for energy saving

    15. Self-diagnosis at UPS start ups


    Applications

    -Graphic Workstations

    -Network servers

    -Data Processing centers

    -Data warehouses

    -BPOs

    -Telecommunication

    -Networking Equipment.

    -Mini and Micro Computers

    -Medical equipment


    Technical Parameters:

    Model*1HP1106BHP1106HHP1110BHP1110HHP3110HHP3115HHP3120H
    rated power6KVA/5.4KW10KVA/9KW15KVA/13.5KW20KVA/18KW
    Input and output modesSingle phase in single phase outThree phase in single phase out
    Electrical Characteristics
    Product topologyOn-line double conversion
    Input voltage220/230/240V
    Input voltage range120-275V,176-270V Full power operation
    Output Voltage / Output Distortion220V/230V/240V ±1 %, THDU<3%
    Enter the frequency range45Hz-64Hz, 50/60Hz Adaptive
    effectivenessUp to 90%(Online)
    Short circuit current82A137A205A273A
    Overload capacity105%-125% : 1min, 125%-150% : 30sec.
    And machineMaximum in parallel machine 3 sets(Optional)
    Power factor0.9
    Conversion timeZero millisecond conversion
    Battery voltage*2192VDC(Optional 204VDC/216VDC/228VDC/240VDC)
    Charging current *34A8A4A8A
    Battery typeValve regulated lead-acid battery
    Standby time/min〉6/18/〉4/11/
    (Full load / half load)
    Communication
    Communication port*4RS232
    Scalable slots1 pcs (Suitable for SNMP cards, ModBus-RTU cards, dry contact cards)
    Operating environment, technical specifications and standards
    Operating environment temperature and humidity0 to 40°C / 20%~90%
    Noise<55dB
    SafetyIEC/EN 62040-1
    EMCIEC/EN 62040-2
    CertificationTLC / radio certification / energy-saving certification
    Physical parameters
    W250245250245250
    L515530515530515
    H608455608455608
    Weight(kg)5717.56520263434
