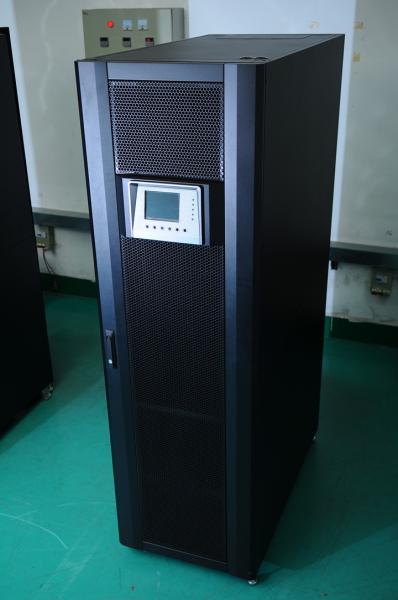

Online low frequency UPS generator 200KVA three phase ups price
online ups ups with transformer
Feature:
-Online double conversion
-DSP Technology guarantee high reliability
-True galvanic isolation transformer design
-Control designed to withstand all kinds of load
-Intelligent battery management to prolong battery lifecyclet
-Independent ventilation enhance durable operation under harsh
environment
-Accept dual-mains input
-Adjustable battery numbers
-Parallel operation with up to 4units (option)
-Variety of communication options available
-Optional 7"touch LCD
-Reverse phase frequency operation and supports non-neutral input
-Built-in maintenance bypass switch
-Output power factor 0.8
Feature:
1) DSP Technology
2) Superior overload capability
3) Large LCD display and LED indicator
4) 50/60Hz source auto detection
5) Emergency Power Off (EPO)
6) Advanced battery charging management
7) N+X parallel redundancy
8) Fault detection and alarming
9) The efficiency of the machine is more than 93%, and reach 98% in
ECO mode.
10) High security dual ac power input function
11) The frequency and phase sequence adaptive system
12) Powerful panel Settings function
13) Intelligent RS485+SNMP+AS400 communication port
Parameter:
| Shangyu GP33 series 10KVA-200KVA Specifications |
| Model | GP3360K | GP3380K | GP33100K | GP33120K | GP33160K | GP33200K |
| Capacity | 60KVA/48KW | 80KVA/72KW | 100KVA/80KW | 120KVA/96KW | 160KVA/128KW | 200KVA/160KW |
| INPUT |
| Norminal Voltage | 3*380VAC/400VAC(3PH +N) |
| Acceptable voltage range | 285VAC~475VAC |
| Frequency Range | 50Hz/60Hz±10% |
| INVERTER |
| Norminal voltage | 380V |
| Precision | 380V±25% |
| Frequency | 50Hz/60Hz |
| Waveform | Pure Sine wave |
| Total Harmonic Distortion(THDv) | ≤2% (linear load); ≤5% (non-linear load) |
| Phase Displacement | 120°±1%(balanced load); 120°±2%(imbalances 50% of the load) |
| Dynamic Recovery Time | 3 cycles at 90% of the static value |
| Admissible Overload | 110% for 10min;150% for 60sec;>160% for 200ms |
| AdmissibleCrest Factor | 3:01 |
| Admissible Power factor | 0.6~1(inductive or capacitive) |
| Imbalance output voltage@100% unbalanced load | <1% |
| Current limit | High overload, short circuit, RMS voltage limit, High Crest-factor
Curren, Peak voltage limit |
| STATIC BYPASS |
| Type | Solid state |
| Voltage | 3*380VAC/400VAC(3PH +N) |
| Frequency | 50Hz/60Hz |
| Activation Criterion | Microprocessor control |
| Transfer time | Zero |
| Admissible Overload | 150% for 1hour;180% for 30sec;>200% for 200ms |
| Transfer to Bypass | Immediate, for overload above160% |
| Retransfer | Automatic after alarm clear |
| MAINTENANCE BYPASS |
| Type | Without Interruption |
| Voltage | 3*400V(3PH+n) |
| Frequency | 50Hz/60Hz |
| Overall Efficiency | Line mode | 105%±5% ≤load,warning overload; |
| Battery Mode | 105%±5% <load≤125%±5% Transfer to bypass and Alarming after 2
mins; |
| BATTERY & CHARGE |
| Battery type & Number | 12VDC*32pcs(29~32pcs adjustable) |
| Normal Battery Voltage | 384VDC(Based on 32pcs batteries) |
| Charging Method | CC/CV |
| Charging Current | Default 10A, Max.40A;5A@ full load |
| Charging Voltage | 432VDC(Based on 32pcs batteries) |
| Safety requirements | GB4943-2001/IEC62040-1 EMC/EMI, IEC 61000-4-5 Protection surge |
| Noise(1m) | ≤55dB |
| PHYSICAL |
| Dimension,D×W×H (mm) | 821×432×1159 | 975×554×1286 | 975×554×1326 | 1051×705×1646 |
| Net Weight(KGS) | 365 | 471 | 573 | 650 | 760 | 840 |
3/3 low frequency ups application:
small and medium sized data centers,Server,critical network
devices, sensitive electronic equipment,small rooms, small
precision electronic instrument
