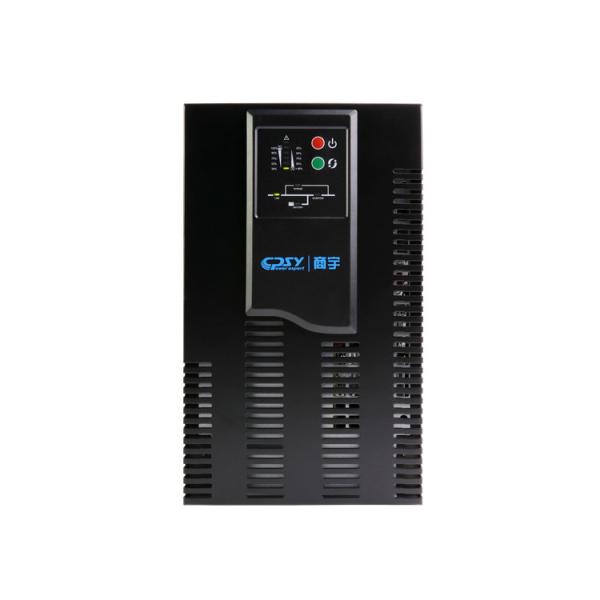

    Lead Acid Battery Single Phase Ups Systems 2kva 1600w Single Phase Online With LED Display

    Ask Lasest Price
    Brand Name : CPSY
    Model Number : HP1102B
    Certification : CE, ISO, ect.
    Price : USD/ piece Kindly contact us!
    Payment Terms : T/T
    Supply Ability : 1500 pieces
    • Product Details
    • Company Profile

    Lead Acid Battery Single Phase Ups Systems 2kva 1600w Single Phase Online With LED Display

    Technical Data for 1kva to 3kva( "B" means built-in battery and "H" means extenal battery)


    ModelHP1101BHP1101HHP1102BHP1102HHP1103BHP1103H
    rated power1KVA/800W2KVA/1600W3KVA/2400W
    Input and output modesSingle phase in single phase out
    Electrical Characteristics
    Product topologyOn-line double conversion IGBT with micro-controller
    Input voltage220/230/240V
    Input voltage range122-300V Full power operation
    Output Voltage / Output Distortion220V/230V/240V ±1 %, THDU<3%
    frequency range50/60Hz, auto-detection
    effectivenessUp to 90%(Online)
    Overload capacity105%-125% : 1min, 125%-150% : 30s; 150%-200% : >300ms.
    Power factor0.98
    Conversion timeZero millisecond conversion
    Battery voltage24VDC36VDC48VDC72VDC72VDC96VDC
    Charging current1A6A1A7A1A7A
    Battery typeValve regulated lead-acid battery
    Standby time/min〉7/14/〉11/31/〉5/16/
    (Full load / half load)
    Communication
    Communication portRS232
    Scalable slots1 pcs (Suitable for SNMP cards, ModBus-RTU cards, dry contact cards)
    Operating environment, technical specifications and standards
    Operating environment temperature and humidity0 to 40°C / 20%~90% non-condensing
    Noise<55dB
    SafetyIEC/EN 62040-1
    EMCIEC/EN 62040-2
    CertificationTLC / radio certification / energy-saving certification
    Physical parameters
    W146146193193193193
    L515530327327327327
    H608455400400400400
    Weight(kg)106189249.5
