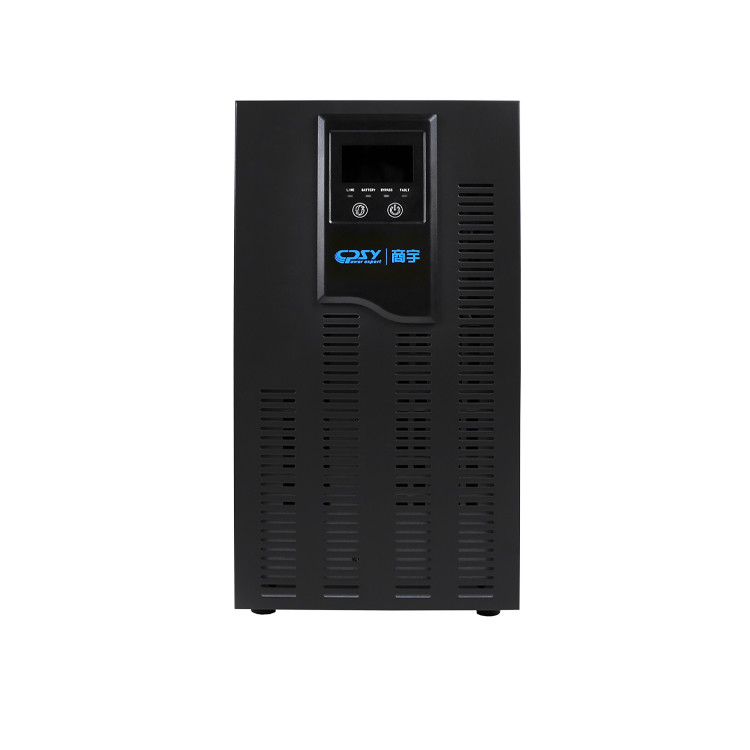

    6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station

    Ask Lasest Price
    Brand Name : CPSY
    Model Number : HP1106H
    Certification : CE
    Price : usd/pcs
    Payment Terms : T/T
    Supply Ability : 5000pcs
    Delivery Time : 15days
    • Product Details
    • Company Profile

    6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station

    High frequency online ups for data center and IT infrastructure

    ModelHP1106HHP1110H
    Capacity6KVA/4.8KW10KVA/8KW
    Norminal voltage220VAC Single phase grounding
    Norminal frequency50Hz
    Input
    Voltage Range120-275VAC
    Frequency Range50Hz:(46-54Hz)
    Power Factor0.99
    Output0
    Voltage Precision220VAC×(1±1%)
    Frequency Precision50Hz×(1±1%)
    Power factor0.8
    Harmonic DistortionLinear load<3% Non-linear<6%

    Overload Capability (AC 25°C)105%-125% Transfer to bypass after 1 min; 125%-135% Transfer to bypass after 30sc; >135% Transfer to bypass after 0.1sc;
    Transfer time0 ms(AC mode↔Battery) ;<4 ms(AC mode↔ Bypass)
    Battery
    DC Voltage192VDC
    Charging current6A
    Backup Time(Full Load)Depends on external battery capacity
    Panel Display
    LED indicatorsinverter, bypass, battery
    ,electricity
    ,load
    ,AC
    Communication portSmart RS232, SNMP (Optional) , AS400(Optional),CMC(Optional)
    Working Environment
    Temperature0°C-40°C
    Relative Humidity20%-90%(non-condensing)
    Storage Temperature-25°C~55°C
    Elevation<1000m
    Noise Level<55dB
    Physical Characteristic
    Weight(KG)17.219.3
    Dimensions: ( W x D x H )240×500×460

    Images:

    6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station6kva 1 Phase Power Supply In And Out Tower High Frequency Ups For Small Station
